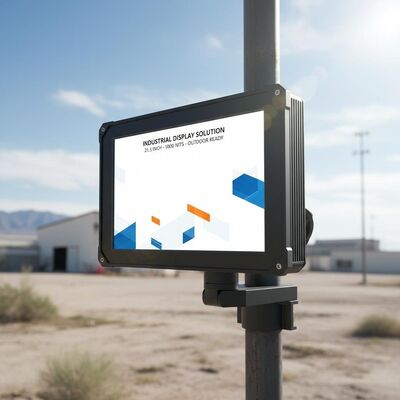

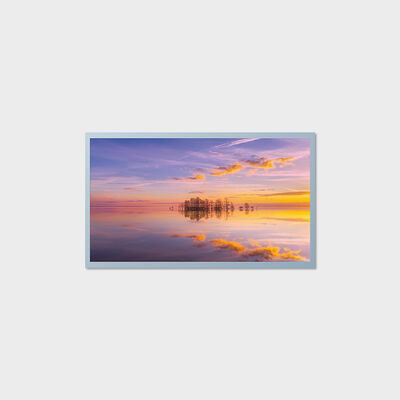

21.5 Inch TFT LCD Display Industrial Middle Size Solution With 1000nits Support Outdoor.
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Tên | Màn hình LCD LCD 21,5 inch | Kích thước bảng điều khiển | 21,5 " |
|---|---|---|---|
| Nghị quyết | 1920*1080 | Độ sáng | 1000 (TYP.) |
| tỷ lệ khung hình | 16:9 | Khu vực hoạt động | 476,64*268,11mm |
| kích thước phác thảo | 495,6*292,2*9,5mm | Giao diện | LVDS (2 kênh, 8-bit) |
| Làm nổi bật | 21.5 inch industrial LCD display,high brightness TFT LCD,outdoor LCD display 1000nits |
||
Mô tả sản phẩm
21.5 Inch TFT LCD Display Industrial Middle Size Solution With 1000nits Support Outdoor
High-performance 21.5-inch TFT LCD display engineered for industrial applications requiring outdoor visibility and reliability.
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with excellent heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0215GB16-C100 |
|---|---|
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 21.5 inch |
| Brightness | 1000 nits |
| Resolution | 1920 × 1080 |
| Active Area | 476.64 × 268.11 mm |
| Overall Size | 495.6 × 292.2 × 9.5 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
