Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application
Thông tin chi tiết sản phẩm
| Tên | Loại LCD | Kích thước bảng điều khiển | 19,4" |
|---|---|---|---|
| Nghị quyết | 1920*519 | Độ sáng | 700 (Loại.) |
| Nhiệt độ hoạt động. | 0~50℃ | Khu vực hoạt động | 476,6*129mm |
| Kích thước phác thảo | 503,2*156,2*14,5mm | Giao diện | LVDS (2 ch, 8-bit) |
| Làm nổi bật | Bar-Type TFT LCD automotive display,Vehicle instrument cluster LCD module,Bar-Type LCD for car dashboard |
||
Mô tả sản phẩm

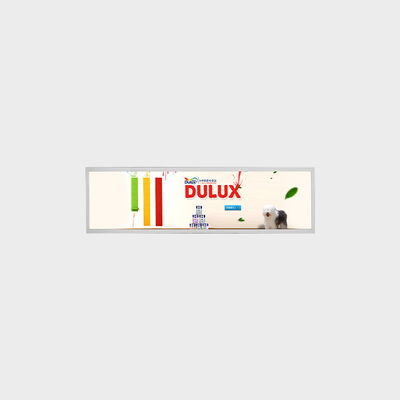

Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application
High-performance bar-type TFT LCD display module specifically designed for automotive instrument clusters and vehicle applications, offering exceptional reliability and customization options.
Product Advantages
- Advanced manufacturing with 3 cutting machines and 2 production lines supporting lengths up to 1.7m (75 inch cutting)
- Precision cutting technology ensuring high yield and dimensional accuracy
- High reliability with identical features to original equipment panels
- Superior anti-vibration performance for automotive environments
- Customizable brightness ranging from 500-2500 nits
- Extended lifespan: 50,000 hours typical, up to 80,000 hours maximum
Product Applications
- Commercial signage: Advertising displays and price shelves
- Public transportation: Bus, metro, and light rail billboards
- Guidance boards and elevator advertising displays
- Financial services: Bank call notice boards
- Identification cards and bus stop/station displays
- Taxi, bus, and subway advertising boards
Technical Specifications
Model: LCMA-RX0194TA01-C070
| Brand | Rogin |
|---|---|
| Series | Cutting (Bar) Type LCD Display |
| Panel Size | 19.4 inch |
| Brightness | 700 nits (Support customized) |
| Resolution | 1920 × 519 |
| Active Area | 476.6 × 129 mm |
| Overall Size | 503.2 × 156.2 × 14.5 mm |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 3000:1 |
| Touch Panel | Without |
| Operating Temperature | 0~50 ℃ |
